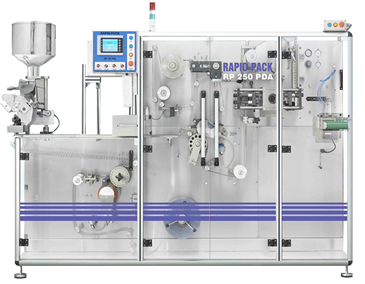

PR 250 PDA Blister Forming Machine

Blister Forming Machine

 Product Description :

Our PR 250 PDA is a thermoforming blister packing machine specially designed to match the cGMP requirement of the pharmaceutical industry. The machine operates on the principles of forming, filling and sealing which are continuous through a rotary motion and the embossing, indexing and punching are intermittent in nature. The PR 250 PDA is an automatic blister packaging machine which can be utilized for packing of Tablets and Capsules in blister packs. A rotary encoder determines the positional accuracy of the machine with respect to the feed pack. All the parametrical changes can be effected with controls through the MMI which has multiple password protection levels. The products to be handled are tablets, capsules for the pharmaceutical and the nutraceutical industry.


Blister Forming Machine
*Max Machine Speed (Packs)
240 Packs (4.5 Mtr/min)
Max Forming Area
110x200mm
Min Pack Size
30x65mm
Optimum Forming Depth
10mm
Max Reel Diameter
440mm
Max Liding Foil
210mm
Max Core Diameter
70-76mm
Connected Load(Kw)
8kw
Average Power Consumption
3kw
(Approx.) Supply 3 Phase, 4W+E
4W+E
Cooling Water Consumption
120 Ltr/Hr
Compressed Air
8cfm at 6 bar
Net Weight Approx
1400 kgs
Machine Width
1220+/ - 2%mm
Machine Height
2250+ / - 2%mm
Machine Length
2750+ / - 2%mm
